1100LPH Twin Screw SAE Flange Mount In-Tank DC Brushless Fuel Pump 93905

  • NEW FOR 2024
  • H/E Series 2800 HP SAE Plate Mount Brushless Screw Pump, 1100lph, Speed Controllable
  • Limited Lifetime Warranty

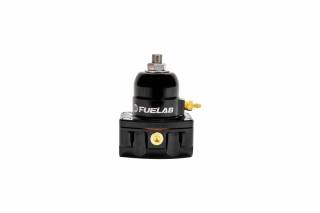

  • To be used with 595 Series Fuel Pressure Regulators with .328" orifice or larger
Pricing: $1,550.00



NEW FOR 2024


1100 LPH @ 45PSI, 125PSI MAX -  13.5v  RATED UP TO 2800HP  Best in Power and Efficiency

Pump Feature

  • Compatible with gasoline, diesel, methanol and ethanol
  • Twin Screw Rotor Pumping Mechanism
  • 125PSI Max Operating Pressure
  • 2800 HP power support
  • Higher efficiency means less current draw and less noise
  • Superior Priming Capabilities
  • Greater resistance to cavitation (vapor lock)
  • Backed by a limited lifetime warranty

Electronic Features

  • 12 to 16 volt vehicle electrical system compatibility
  • Variable duty motor speed

Motor Features

  • Lightweight super-efficient DC brushless motor to minimize current draw
  • Powerful high flux density Neodymium rare earth magnets
  • No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
  • Wet motor design, no dynamic shaft seals that can wear out

Construction Features

  • Compact, lightweight design, less than 2.5lbs. Overall length 8”, pump diameter 2”
  • Billet Aluminum Construction with anodize per MIL-A-8625 Type II
  • Flange mounted SAE 10-Bolt pattern for easy use with fuel cells of fabricated reservoirs
  • Long Life, multi-fuel compatible Fluorosilicone static seals
  • Accepts standard or port style -8AN fittings


Pulse Width Modulation Compatibility (PWM)

Technical Sheets

Shipping Information

  • Item Requires Shipping
  • 2.4 lbs.
  • W6.0000” x H13.0000” x L6.0000”
