61701 300LPH Twin Screw 2.1L Fuel Surge Tank System

  • H/E Series 235mm Tall Fuel Surge Tank System 625 HP SAE Plate Mount Brushless Screw Pump
  • Limited Lifetime Warranty
Pricing: $1,100.61



2.1L Fuel Surge Tank System with Speed Controllable, Twin
Screw DC Brushless Fuel Pump, 300lph

Product Features:

  • Allows for high fuel flow output with little or no modifications to the OE fuel tank and module
  • Prevents fuel sloshing by maintaining a ready volume of fuel
  • 235mm Tall
  • FST Rated volume: 2.1 L
  • Single Twin Screw DC Brushless fuel pump included
  • Rated to flow 300lph at 45psi, 125psi Max
  • Integrated controller with PWM speed control
  • Billet aluminum and O-ring Construction using -8AN Fuel Ports
  • Compatible with Pump and Racing Gasoline, and E85
  • Return line is required, returns excess fuel back to the vehicle fuel tank

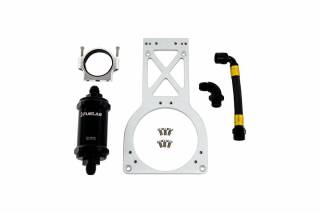

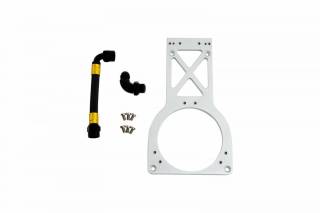

  • Optional FST Upgrade Accessory Kits Sold Separately

Pulse Width Modulation Compatibility (PWM)

Technical Sheets

Shipping Information

  • Item Requires Shipping
  • 4.5 lbs.
  • W6.0000” x H13.0000” x L6.0000”
